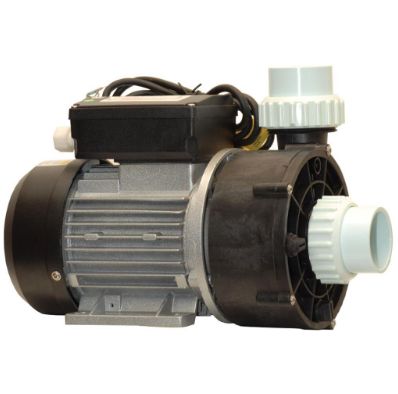

LX WTC50M Circulation Pump

Overview

This single speed pump is a short bodied and is rated as 1 hp, it is a self drain pump.Commonly used as a circulation pump on hot tubs and swim spas but can also be fitted to many whirlpool baths as well.

Dimensions

• Length: 290mm
• Width: 160mm
• Height: 200mm

Specifications

• Amps: 1.0
• Volts: 230
• Hz: 50
• RPM: 1400
• Motor HP: 0.35
• Capacitor: 7uf
• Fittings: 1.5 inch
• Motor KW: 0.25
• Wet end impellor HP: 0.33

Other info

LX pumps are not fitted with air switches. They can be retrofitted by a qualified electrician.

This model can be found on a Wellis Hot Tub under Part Number ACM0846.

It can also be used as a replacement for 6500-920 which can be found on JACUZZI® J375/J365/J355/J335 models.
Please note that this may require some pipework adjustment. If unsure please give us a call.

Additional Info

Comes complete with cable & unions
