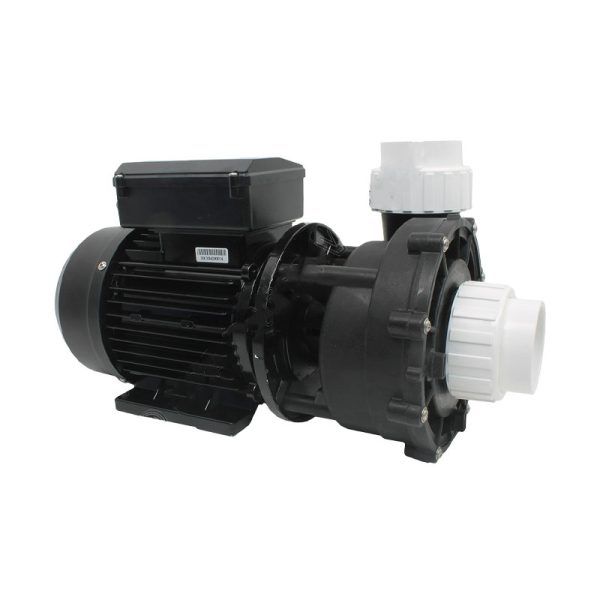

LX LP and WP 200 / 250 / 300 / 400 / 500 (single and dual speed with standard 2” x 2” wetend)
£258.11
Price incl.
VAT (20%)
£43.02
In stock
Product Details
Brand:
LX
The LX range of 56 frame speed pumps come complete with either a 3 or 4 core plain cable. They carry a 12 month warranty from date of purchase and are completely interchangeable with certain Waterway and Aquaflo pumps
We also offer both the JACUZZI® & SUNDANCE® SPAS pumps
Dimensions
LP200, LP250, LP300:
Length: 400mm
Width: 205mm
Height: 220mm
WP200, WP250, WP300:
Length: 435mm
Width: 200mm
Height: 235mm
WP400
Length: 415mm
Width: 202mm
Height: 197mm
WP500
Length: 458mm
Depth: 209mm
Height: 261mm
Specifications
Single Speed:
| LP150 - single speed | LP200 - single speed | LP250 - single speed | LP300 - single speed | WP400-I - single speed |
|---|---|---|---|---|
| Amps: 5.8 | Amps: 7 | Amps: 8 | Amps: 10 | Amps: 12 |
| Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 |
| Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 |
| RPM: 2900 | RPM: 2900 | RPM: 2900 | RPM: 2900 | RPM: 2900 |
| Motor KW: 1.1 HP: 1.5 | Motor KW: 1.5 HP: 2 | Motor KW: 1.85 HP: 2.5 | Motor KW: 2.2 HP: 3.14 | Motor HP: 4 |
| Capacitor: ?uf | Capacitor: 30uf | Capacitor: 40uf | Capacitor: 50uf | Capacitor:? |
| Fittings: 2 inch | Fittings: 2 inch | Fittings: 2 inch | Fittings: 2 inch | Fittings: 63 mm |
Two Speed:
| WP200 - Two speed | WP250 - Two speed | WP300 - Two speed | WP500-II - Two speed |
|---|---|---|---|
| Amps: High 7 / Low 2 | Amps: High 9 / Low 2.5 | Amps: High 10 / Low 3 | Amps Low / High Speed: 4.5 / 15.0 |
| Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 |
| Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 |
| RPM: 2900 / 1425 | RPM: 2900 / 1425 | RPM: 2900 / 1425 | RPM Low / High: ? |
| Motor KW: 1.5 HP: 2 | Motor KW: 1.85 HP: 2.5 | Motor KW: 2.2 HP: 3.14 | Motor Hp Low / High: 5 HP / 1 HP |
| Capacitor: 30uf | Capacitor: 40uf | Capacitor: 50uf | Capacitor:? |
| Fittings: 2 inch | Fittings: 2 inch | Fittings: 2 inch | Fittings: 2.5 inch |
Spares List
We have a complete list of spare parts available for the:
WP200-ii pump
WP300-ii pump
LP200-ii pump
Ideal For
Please note the WP400-I & WP500-II cannot rotate to top left and right *please check with us
