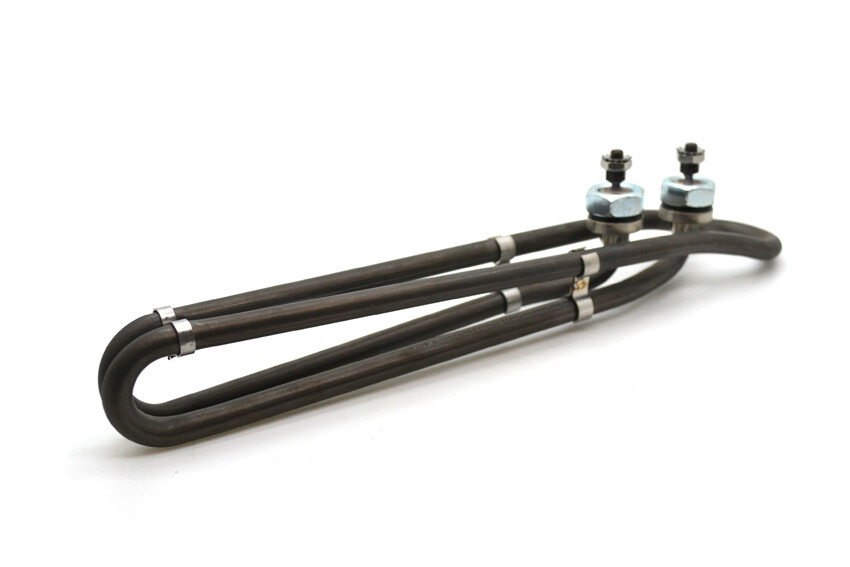

Heater Elements - Titanium Coating
These replacement elements are used when your existing hot tub element is damaged or faulty, elements commonly burn out or become damaged if the heater manifold is not flooded with flowing water (primed) before the unit is activated. They have a titanium coating for additional life.
Dimensions
All these elements have the same dimensions, yours may vary slightly in length and height but the critical dimension for fitting is the distance between the terminals.
Length:
250mm
Distance Between terminals:
33mm
Height:
60mm
Specifications
| Amps: 6 | Amps: 8.0-8.5 | Amps: 10-11 | Amps: 11.5-12 |
| Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 |
| Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 |
Additional Info
If your Balboa heater has the following codes, this is the element for you: 58063 / 50139. (2Kw version)
58107 / 58061 / 50145 / 58046. (3Kw version)
The item comes complete with 2 x 19mm nuts to secure the spa element in place, also a complete installation guide is issued with the product.
