Heater Elements - Standard Coating
Please Note: Once all stock is sold the Standard Coated Heater Elements will be discontinued and will be replaced by the Titanium Coated Heater Elements.

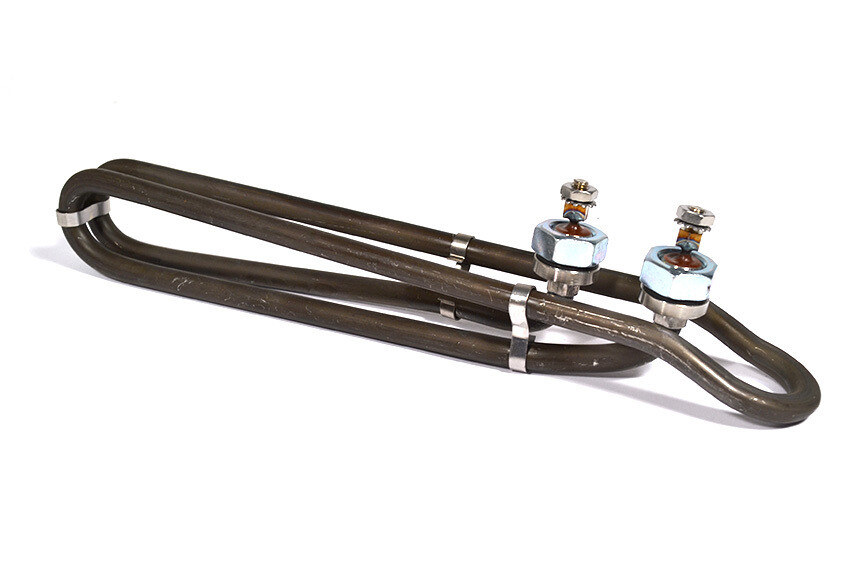

These replacement elements are used when your existing hot tub element is damaged or faulty, elements commonly burn out or become damaged if the heater manifold is not flooded with flowing water (primed) before the unit is activated. These have a standard coating. We also have titanium coated elements available at a slightly increased cost.
Dimensions
All these elements have the same dimensions, yours may vary slightly in length and height but the critical dimension for fitting is the distance between the terminals.
- Length: 250mm
- Distance Between terminals: 33mm
- Height: 60mm
Specifications
| 1.3 - 1.5KW | 2.0 KW | 2.5 KW | 3.0 KW | 3.6 KW | 4.0 KW |
|---|---|---|---|---|---|
| Amps: 6 | Amps: 8.0-8.5 | Amps: 10-11 | Amps: 11.5-12 | Amps: 13.5-14.5 | Amps: 15-16 |
| Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 |
| Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 |
These can replace elements for Balboa, HydroQuip, Gecko, Thermcore, Aquatemp, RMF, Spa Builders, Brett Aqualine
Additional Info
If your Balboa heater has the following codes, this is the element for you: 58063 / 50139. (2Kw version)
58107 / 58061 / 50145 / 58046. (3Kw version)
The item comes complete with 2 x 19mm nuts to secure the spa element in place, also a complete installation guide is issued with the product.
