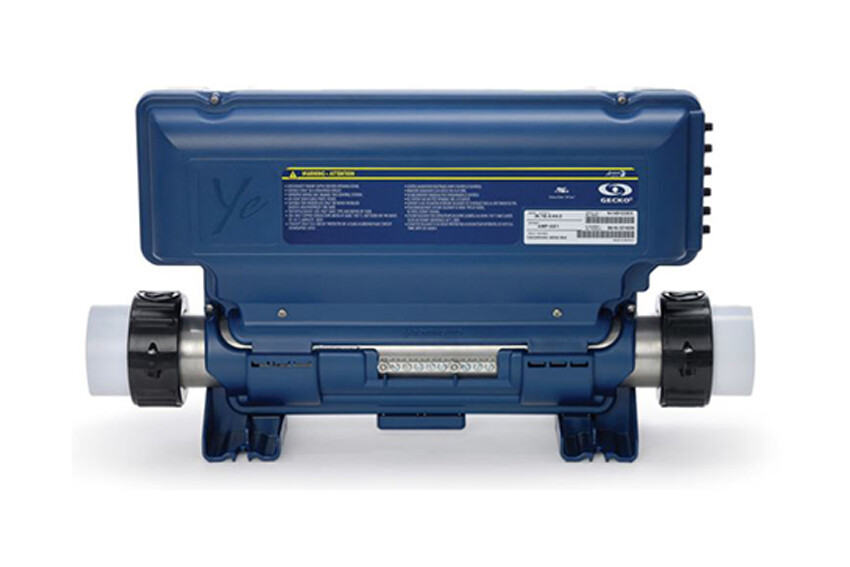

Gecko IN.YE-5 Control Box
This is a Gecko IN.YE-5 Control Box, a perfect choice for entry level - mid range spas with 1 pump (1 or 2 speeds), 2 pump (1 or 2 speeds), Blower, Circulation pump or Ozone System. It supports 5 configurable outputs, keypad, heater, 12V light (Dual speed pumps use 2 outputs) and can easily be installed and connected to pumps and accessories. It delivers optimal performance and has the ability to open up to the addition of add-ons such as wireless control from mobiles, audio streaming and water sanitation, increasing your spa experience.
Features
- IPX5 rated waterproof
- Solid state water flow detection
- Programmable filter cycles
- Self diagnostic
- Aeware keypad compatible
- Supports 1,2,3 phase input power
- In.Touch Wireless remote compatible
- Protection against overheating
- Easy installation
- Quick Connect, AMP connections available
- Integrated temperature probe
The Control Box Supports:
5 Outputs
3kW heater
12V Light
Keypad
Dimensions
Dimensions: (W x H x D) 19.58" x 10.75" x 4.98" (497 x 273 x 126 mm)
Weight: 9.7 lb (4.4 kg)
Additional Info
It is compatible to a wide range of keypads including IN. K120 Auxillary Panel, IN. K200, IN. K300, IN. K19, IN. K35, IN. K45, IN. K450, IN. K600 ST, IN. K500, IN. K800, IN. K1000, In.touch/In.touch2.
If using both circulation pump and ozone system, it must be in the same voltage and will need and Amp splitter harness.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.
We advise to use this control box only for like for like replacement only
Please ensure this is the correct box and this item is non refundable
