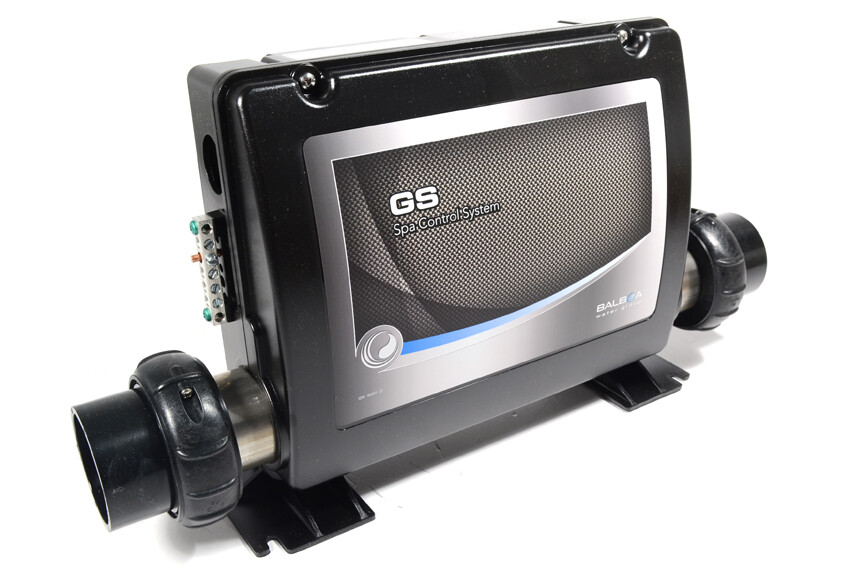

GS500Z Control Box and 3KW Heater

If you are buying this GS500Z box due to a failure, be aware we supply the individual components for direct replacement:

GS500Z Printed Circuit Board
3KW complete heater assembly
3KW heater element only (titanium)

However, if you are building a system for an upgrade (including topside panel) then we would recommend the Balboa BP601 complete spa system (fantastic wireless function)

Features

Built on patented M7 sensor technology
European safety approvals
RoHS compliant - environmentally friendly
Custom designed plastic enclosure
Easy to install & service
Integrated functionality
State of the art design
M7 flow and temperature sensors - replaces failure-prone mechanical pressure/flow switch

Dimensions

26.82 x 31.14 x 11.68 cm

Configuration

Pump 1: 2 speed (one speed with circ / circ pump, 24hr operation with 1.5 degree centigrade safety shut off)
Heater: 3KW Heater with M7 technology* (15" assembly with 2" diameter.)
Spa light: 10V 12W – on/off
Ozone: Available
Audio visual device power output: Available

Specifications

KW: 3
Volts: 230
Hz: 50
Fittings: 2 inch

Additional Info

This pack is connected to all components via amp plugs, it is only compatiable with VL402, VL260, VL401, VL240 and mini series of touch panels.

The Global Series or GS range of spa control systems are Balboa designed using M7 temperature & water flow sensing technology. This increases the reliability, serviceability and installation ease of the system box.

Easy Service & Installation
The GS range uses a common universal control platform, the GS family has very good feature flexibilities, incorporating M7 temperature probe technology, which eliminates the failure prone pressure switch systems and simplifies the installation process by not having to drill additional holes in the spa.

High Reliability & Flexible
All boxes have a plastic enclosure eliminating water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service.

Proven Reliability
