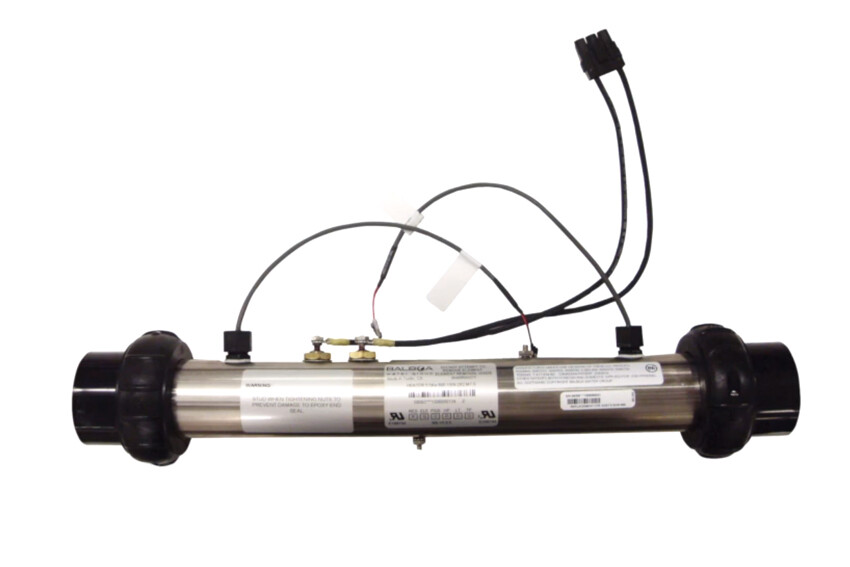

Balboa Heater M7 (BP Series)
They come complete with two M7 sensors (24" in length) to monitor & regulate spa water flow and temperature, 2 inch gasket seals and 2 inch collars .
Dimensions
Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unions): 19.5 inches
Held in with two fixing studs, one at the top and one underneath. 2 inch white plastic female sockets to connect to plumbing.
Specifications
| Balboa ID Number: 58115R01 | Balboa ID Number: 58107R01 |
|---|---|
| KW: 2.0 | KW: 3.0 |
| Required flow rate: 21 GPM. | Required flow rate: 21 GPM. |
| Amps: 8.0-8.5 | Amps: 11.5-12.0 |
| Volts: 230 | Volts: 230 |
| Hz: 50 | Hz: 50 |
| Element: Incoloy | Element: Incoloy |
| Plumbing Connection: 2'' | Plumbing Connection: 2'' |
Ideal For
New Systems
Direct replacement for Balboa BP500/501, BP600/601, and BP2100 systems
Older Systems
These heaters are the replacement for the now discontinued Balboa M7 Heater with Studs - 2Kw & 3Kw (GS-GL) used in older Balboa systems.
You will need to use the PCB Female Receiver Cable to fit to an older Balboa system. For installations instructions, please see the associated documents.
2Kw Version
Always match the heater number to ensure the correct specification, the 2kw can be used with GS-GL packs such as GS500, 500Z, 501, 501Z systems, spas that use this heater include Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct, Wellis P/N ACM0552
| 58115 | 58115-01 | 58145 | 55091 | 55091-01 | 55093 | 55093-01 | 55093-02 | 55165-01 |
| 55165-02 | 55165-03 | 55183-01 | 55183-02 | 55248 | 55248-01 | |||
| 55248-02 | 55248-03 | 55425 | 55881 | 55881-01 | 55883 | |||
| 56240 | 56304 | 58122 | 58395 |
3KW Version
Always match the heater number to ensure the correct specification, the 3kw can be used with GS500, 500Z, 501, 501Z (3.0KW only), 501SZ, 510, 510S, 510Z, 510SZ, 511SZ, 523DZ, GL2000 mach 3, GL2001 mach 3 systems, it is used in spa including Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct. Now readily used in the BP packs
| 58107 | 58118 | 58141 | 53340 | 53340-01 | 53340-02 | 53340-03 | 53340-04 | 53340-HC |
| 53340HC1 | 53355 | 53355-01 | 53355-02 | 53355-03 | 53355-04 | |||
| 53355-HC | 53355HC1 | 53529 | 53529-01 | 53529-02 | 53529-03 | |||
| 53555 | 53555-01 | 53555-02 | 53641-01 | 53641-02 | 53641-03 | |||
| 53687 | 53687-01 | 53687-02 | 53891 | 53891-01 | 53893 | |||
| 53893-01 | 53936 | 53936-01 | 53955 | 53955-01 | 53955-02 | |||
| 53955-03 | 53996-01 | 54204 | 54204-01 | 54204-02 | 54204-03 | |||
| 54258 | 54295 | 54330 | 54330-01 | 54330-02 | 54406-01 | |||
| 54406-02 | 54406-03 | 54406-04 | 54481 | 54481-01 | 54481-02 | |||
| 54481-03 | 54509 | 54509-01 | 54509-HC | 54509HC1 | 54511 | |||
| 54511-01 | 54511-HC | 54511HC1 | 54515 | 54515-01 | 54515-02 | |||
| 54517 | 54517-01 | 54517-02 | 54517-03 | 54517-HC | 54517HC1 | |||
| 54517HC2 | 54517HC3 | 54519 | 54519-01 | 54519-02 | 54521 | |||
| 54521-01 | 54521-02 | 54586 | 54648 | 54648-01 | 54650 | |||
| 54650-01 | 54700 | 54751 | 54751-01 | 54752 | 54752-01 | |||
| 54763 | 54763-01 | 54848 | 55048 | 55048-01 | 55048-02 | |||
| 55048-03 | 55048-04 | 55058 | 55060 | 55062 | 55062-01 | |||
| 55062-02 | 55070 | 55074 | 55074-01 | 55076 | 55076-01 | |||
| 55078 | 55078-01 | 55082 | 55082-01 | 55089 | 55106 | |||
| 55106-01 | 55127 | 55165 | 55183 | 55186 | 55186-01 | |||
| 55216 | 55216-01 | 55216-02 | 55216-03 | 55250 | 55250-01 | |||
| 55292 | 55399 | 55401 | 55401-01 | 55403 | 55403-01 | |||
| 55406 | 55408 | 55410 | 55415 | 55415-01 | 55421 | |||
| 55421-01 | 55423 | 55423-01 | 55446 | 55454 | 55461 | |||
| 55461-01 | 55474 | 55474-01 | 55485 | 55498 | 55556 | |||
| 55556-01 | 55572 | 55648 | 55650 | 55652 | 55660 | |||
| 55660-01 | 55670 | 55845 | 55845-01 | 55874 | 55892 | |||
| 55896 | 55898 | 55907 | 55942 | 55942-01 | 56010 | |||
| 56010-01 | 56015 | 56078 | 56078-01 | 56084 | 56086 | |||
| 56104 | 56104-01 | 56123 | 56123-01 | 56133 | 56140 | |||
| 56158 | 56170 | 56172 | 56250 | 56251 | 56281 | |||
| 56289 | 56289-01 | 56331 | 59008 | 59008-01 | 59008-02 |
